GC 标记准备阶段

func schedinit() {
 	...
    gcinit()
}

func gcinit() {
	if unsafe.Sizeof(workbuf{}) != _WorkbufSize {
		throw("size of Workbuf is suboptimal")
	}

	// No sweep on the first cycle.
	mheap_.sweepdone = 1

	// Set a reasonable initial GC trigger.
	memstats.triggerRatio = 7 / 8.0

	// Fake a heap_marked value so it looks like a trigger at
	// heapminimum is the appropriate growth from heap_marked.
	// This will go into computing the initial GC goal.
	memstats.heap_marked = uint64(float64(heapminimum) / (1 + memstats.triggerRatio))

    // 设置 GOGC，用于计算出发GC 的CPU 阈值
	_ = setGCPercent(readgogc())

	work.startSema = 1
	work.markDoneSema = 1
	lockInit(&work.sweepWaiters.lock, lockRankSweepWaiters)
	lockInit(&work.assistQueue.lock, lockRankAssistQueue)
	lockInit(&work.wbufSpans.lock, lockRankWbufSpans)
}

// `runtime.gcphase`从`_GCmark`修改为 `_GCmark`

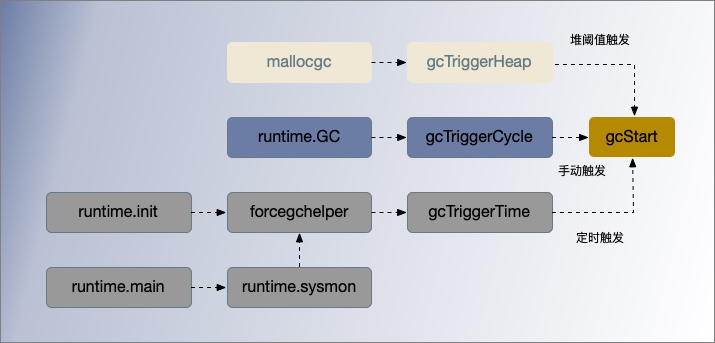

// 接收 runtime.gcTrigger 作为出发 GC的类型，可以根据这个触发 _GCoff 退出的结构体找到所有触发的垃圾收集的代码
func gcStart(trigger gcTrigger) {
	// Since this is called from malloc and malloc is called in
	// the guts of a number of libraries that might be holding
	// locks, don't attempt to start GC in non-preemptible or
	// potentially unstable situations.
	mp := acquirem()
	if gp := getg(); gp == mp.g0 || mp.locks > 1 || mp.preemptoff != "" {
		releasem(mp)
		return
	}
	releasem(mp)
	mp = nil

    // 完成上一个垃圾收集循环的收尾工作，理已经被标记的内存单元 span
	// 不应该在后台模式下被调用，因为部分扫描应该刚刚完成扫描？
	//但是舍入错误等，可能会留下一些 span 未清扫。在强制模式下，这是必要的，因为GC可以在清扫周期的任何时候强制执行。
	//我们在这里持续地检查变迁条件，以防这个G被延迟到下一个GC周期。
    // 在循环中不断调用 runtime.sweepone 清理已经被标记的内存单元，完成上一个垃圾收集循环的收尾工作
	for trigger.test() && sweepone() != ^uintptr(0) {
		sweep.nbgsweep++
	}

    // 执行 GC 初始化和清扫终止变迁
	semacquire(&work.startSema)
	// 再次检查是否满足启动GC条件
	if !trigger.test() {
		semrelease(&work.startSema)
		return
	}

	work.userForced = trigger.kind == gcTriggerCycle //  判断是否用户强制触发GC


	mode := gcBackgroundMode  // 后台并发标记模式
	if debug.gcstoptheworld == 1 {  // 从环境变量 GODEBUG 获取 gcstoptheworld 参数设置
		mode = gcForceMode   // stop-the-world GC now, concurrent sweep
	} else if debug.gcstoptheworld == 2 {
		mode = gcForceBlockMode // stop-the-world GC now and STW sweep (forced by user)
	}

	// Ok, we're doing it! Stop everybody else
	semacquire(&gcsema)
	semacquire(&worldsema) // 通过 semacquire 获取全局的 worldsema 信号量

	if trace.enabled {
		traceGCStart()
	}

	// Check that all Ps have finished deferred mcache flushes.
	for _, p := range allp {
        // flushGen 指示最后一次刷新mcache的扫描期间。
        // 如果flushGen != mheap.sweepgen，这个mcache的 spans 已经陈旧了，需要冲洗一下才能清扫。
		if fg := atomic.Load(&p.mcache.flushGen); fg != mheap_.sweepgen {
			println("runtime: p", p.id, "flushGen", fg, "!= sweepgen", mheap_.sweepgen)
			throw("p mcache not flushed")
		}
	}

	gcBgMarkStartWorkers()  // 后台启动用于处理标记任务的工作 Goroutine 与处理器绑定，并休眠等待唤醒

	systemstack(gcResetMarkState) // gcResetMarkState 重置标记前的全局状态(并发或STW)，并重置所有G的栈扫描状态。

	work.stwprocs, work.maxprocs = gomaxprocs, gomaxprocs
	if work.stwprocs > ncpu {
		// This is used to compute CPU time of the STW phases,
		// so it can't be more than ncpu, even if GOMAXPROCS is.
		work.stwprocs = ncpu
	}
	work.heap0 = atomic.Load64(&memstats.heap_live)
	work.pauseNS = 0
	work.mode = mode

	now := nanotime()
	work.tSweepTerm = now
	work.pauseStart = now
	if trace.enabled {
		traceGCSTWStart(1)
	}
	systemstack(stopTheWorldWithSema)  // STOP THE WORLD
	// 在开启新一轮标记之前，先完成之前的清理工作
	systemstack(func() {
		finishsweep_m() // 在 STW 条件下执行清理任务，确保没有未清理的
	})

	// clearpools before we start the GC. If we wait they memory will not be
	// reclaimed until the next GC cycle.
    // 在我们开始GC之前清除池。如果我们等待，它们的内存直到下一个GC周期才会被回收。
	clearpools()

	work.cycles++

	gcController.startCycle()
	work.heapGoal = memstats.next_gc

	// In STW mode, disable scheduling of user Gs. This may also
	// disable scheduling of this goroutine, so it may block as
	// soon as we start the world again.
	if mode != gcBackgroundMode {
		schedEnableUser(false)
	}

	// 进入并发标记阶段，开启写屏障
	// 因为程序处于STW，所有P将观察到写屏障被启用时，我们开始世界和开始扫描。
	// 必须在启用辅助程序之前启用写屏障，因为必须在标记任何非叶子堆对象之前启用它们。
    // 由于分配会被阻塞，直到有辅助标记才会发生，所以我们希望尽早启用帮助
    // 修改全局的垃圾收集状态为 _GCmark
	setGCPhase(_GCmark) //
    // 初始化后台扫描需要的状态
	gcBgMarkPrepare() 	// Must happen before assist enable.
	gcMarkRootPrepare() // 扫描栈上、全局变量等根对象并将它们加入队列

	// 标记所有活跃的tinyalloc块。因为我们从这些分配中分配，它们需要像其他分配一样是黑色的。
    // 另一种方法是使来自它的每个分配中的小块变黑，这将减慢小分配器的速度。
	gcMarkTinyAllocs() // 将所有处理器的 mcache 中活跃的tiny 对象标为灰色，必须处于 STW

    // 以启动写屏障
    // 垃圾收集处于标记阶段时，gcBlackenEnabled被置为 1，辅助垃圾收集的用户程序和后台标记的任务可以将对象涂黑
	atomic.Store(&gcBlackenEnabled, 1)

	// Assists and workers can start the moment we start
	// the world.
	gcController.markStartTime = now

	// In STW mode, we could block the instant systemstack
	// returns, so make sure we're not preemptible.
	mp = acquirem()

	// Concurrent mark.
	systemstack(func() {
		now = startTheWorldWithSema(trace.enabled)
		work.pauseNS += now - work.pauseStart
		work.tMark = now
	})

	// Release the world sema before Gosched() in STW mode
	// because we will need to reacquire it later but before
	// this goroutine becomes runnable again, and we could
	// self-deadlock otherwise.
	semrelease(&worldsema)
	releasem(mp)

	// Make sure we block instead of returning to user code
	// in STW mode.
	if mode != gcBackgroundMode {
		Gosched()
	}

	semrelease(&work.startSema)
}

// The main goroutine.
// runtime.main()
func main() {
    ...
    if GOARCH != "wasm" { // no threads on wasm yet, so no sysmon
		systemstack(func() {
			newm(sysmon, nil, -1)
		})
	}
    ...

}

// Always runs without a P, so write barriers are not allowed.
//
//go:nowritebarrierrec
func sysmon() {
    ...
    // check if we need to force a GC
    if t := (gcTrigger{kind: gcTriggerTime, now: now}); t.test() && atomic.Load(&forcegc.idle) != 0 {
        lock(&forcegc.lock)
        forcegc.idle = 0
        var list gList
        list.push(forcegc.g)
        injectglist(&list)
        unlock(&forcegc.lock)
    }
    ...
}

var worldsema uint32 = 1 // 持有worldsema让M试图阻止世界的权利。

func stopTheWorldWithSema() {
   _g_ := getg()

   // If we hold a lock, then we won't be able to stop another M
   // that is blocked trying to acquire the lock.
   if _g_.m.locks > 0 {
      throw("stopTheWorld: holding locks")
   }

   lock(&sched.lock)
   sched.stopwait = gomaxprocs  //程序中活跃的最大处理数 gomaxprocs
   atomic.Store(&sched.gcwaiting, 1)
   preemptall()
   // stop current P
   _g_.m.p.ptr().status = _Pgcstop // Pgcstop is only diagnostic.
   sched.stopwait--
   // try to retake all P's in Psyscall status
   for _, p := range allp {
      s := p.status
      if s == _Psyscall && atomic.Cas(&p.status, s, _Pgcstop) {
         if trace.enabled {
            traceGoSysBlock(p)
            traceProcStop(p)
         }
         p.syscalltick++
         sched.stopwait-- // 每停止一个处理器，就减1，直到所有处理器都停止
      }
   }
   // stop idle P's
   for {
      p := pidleget()
      if p == nil {
         break
      }
      p.status = _Pgcstop
      sched.stopwait--
   }
   wait := sched.stopwait > 0
   unlock(&sched.lock)

    // 等待已经在运行的 P 停止。
   if wait {
      for {
         // wait for 100us, then try to re-preempt in case of any races
         if notetsleep(&sched.stopnote, 100*1000) {
            noteclear(&sched.stopnote)
            break
         }
         preemptall() // 暂停程序主要使用了 preemptall 函数
      }
   }

   // sanity checks
   bad := ""
   if sched.stopwait != 0 {
      bad = "stopTheWorld: not stopped (stopwait != 0)"
   } else {
      for _, p := range allp {
         if p.status != _Pgcstop {
            bad = "stopTheWorld: not stopped (status != _Pgcstop)"
         }
      }
   }
   if atomic.Load(&freezing) != 0 {
      // Some other thread is panicking. This can cause the
      // sanity checks above to fail if the panic happens in
      // the signal handler on a stopped thread. Either way,
      // we should halt this thread.
      lock(&deadlock)
      lock(&deadlock)
   }
   if bad != "" {
      throw(bad)
   }
}

// 暂停程序会使用 runtime.preemptall 抢占所有的处理器。通知其他 goroutines 停止。
// 如果处理器刚开始运行goroutine，它可能无法通知goroutine。
// 不需要持有锁。
// 如果向至少一个goroutine发出抢占请求，返回true。
func preemptall() bool {
	res := false
	for _, _p_ := range allp { // 遍历每个 P
		if _p_.status != _Prunning {
			continue
		}
		if preemptone(_p_) {  // 调用 preemptone 通知正在处理器P上运行的 goroutine 停止。
			res = true
		}
	}
	return res
}

semacquire(&worldsema, 0)
m.preemptoff = "reason"
systemstack(stopTheWorldWithSema)

m.preemptoff = ""
systemstack(startTheWorldWithSema)
semrelease(&worldsema)

func startTheWorldWithSema(emitTraceEvent bool) int64 {
	mp := acquirem() // disable preemption because it can be holding p in a local var
    // 从网络轮询器中获取待处理的任务并加入全局队列
	if netpollinited() {
        // netpoll检查就绪的网络连接。返回可运行的goroutines列表。
		list := netpoll(0) // 非阻塞
		injectglist(&list) // 将可运行的 goroutine 加入全局队列
	}
	lock(&sched.lock)

	procs := gomaxprocs
	if newprocs != 0 {
		procs = newprocs
		newprocs = 0
	}
	p1 := procresize(procs) // 返回带有本地工作的P列表，它们需要由调用者进行调度。
	sched.gcwaiting = 0
	if sched.sysmonwait != 0 {
		sched.sysmonwait = 0
		notewakeup(&sched.sysmonnote)
	}
	unlock(&sched.lock)

    // 调用 runtime.notewakeup 或者 runtime.newm 依次唤醒处理器或者为处理器创建新的线程
	for p1 != nil {
		p := p1
		p1 = p1.link.ptr()
		if p.m != 0 {
			mp := p.m.ptr()
			p.m = 0
			if mp.nextp != 0 {
				throw("startTheWorld: inconsistent mp->nextp")
			}
			mp.nextp.set(p)
			notewakeup(&mp.park)
		} else {
			// Start M to run P.  Do not start another M below.
			newm(nil, p, -1)
		}
	}

	// Capture start-the-world time before doing clean-up tasks.
	startTime := nanotime()
	if emitTraceEvent {
		traceGCSTWDone()
	}

	wakep() // 如果当前待处理的 Goroutine 数量过多，创建额外的P辅助完成任务；

	releasem(mp)

	return startTime
}

func gcStart() {
    ...
    gcBgMarkStartWorkers()
}

func gcBgMarkStartWorkers() {
    // 为每个处理器创建用于执行后台标记任务的 Goroutine
    // gcBgMarkWorker Goroutine 在启动后都会陷入休眠等待调度器的唤醒：
	for _, p := range allp {
		if p.gcBgMarkWorker == 0 {
			go gcBgMarkWorker(p)
			notetsleepg(&work.bgMarkReady, -1)
			noteclear(&work.bgMarkReady)
		}
	}
}

//获取当前 P 及 G 打包成 parkInfo 类型的结构体并主动陷入休眠等待唤醒；
//根据处理器上的 gcMarkWorkerMode 模式决定扫描任务的策略；
//所有标记任务都完成后，调用 runtime.gcMarkDone 方法完成标记阶段；
func gcBgMarkWorker(_p_ *p) {
	gp := getg() // 返回当前 goroutine 指针

    //获取当前处理器以及 Goroutine 打包成 parkInfo 类型的结构体并主动陷入休眠等待唤醒
    //先存储处理器和当前 Goroutine
	type parkInfo struct {
		m      muintptr // Release this m on park.
		attach puintptr // If non-nil, attach to this p on park.
	}
    // 我们把park传递给gopark解锁函数，所以它不能放在栈上(见gopark)。通过禁用抢占来防止死锁递归启动GC。
	gp.m.preemptoff = "GC worker init"
	park := new(parkInfo)
	gp.m.preemptoff = ""

	park.m.set(acquirem())
	park.attach.set(_p_)
	// 通知 gcBgMarkStartWorkers 这个 worker 已经准备好了。
	// 在此之后，后台标记工作器将由gcController.findRunnable协同调度。因此，它永远不能被抢占，
    // 因为这将把它放到_Grunnable中，并把它放到运行队列中。
    // 相反，当设置preempt标志时，它将自己放入_Gwaiting中，由gcController唤醒。在适当的时候找到。
	notewakeup(&work.bgMarkReady)

	for {
        // gopark 触发休眠，将 g 设置为休眠状态，直到被 gcController.findRunnable 唤醒
		// We can't releasem yet since even the call to gopark
		// may be preempted.
		gopark(func(g *g, parkp unsafe.Pointer) bool {
			park := (*parkInfo)(parkp)

            // G 不再运行，所以允许抢占
			releasem(park.m.ptr())

			// If the worker isn't attached to its P,
			// attach now. During initialization and after
			// a phase change, the worker may have been
			// running on a different P. As soon as we
			// attach, the owner P may schedule the
			// worker, so this must be done after the G is
			// stopped.
			if park.attach != 0 {
				p := park.attach.ptr()
				park.attach.set(nil)
				// cas the worker because we may be
				// racing with a new worker starting
				// on this P.
				if !p.gcBgMarkWorker.cas(0, guintptr(unsafe.Pointer(g))) {
					// The P got a new worker.
					// Exit this worker.
					return false
				}
			}
			return true
		}, unsafe.Pointer(park), waitReasonGCWorkerIdle, traceEvGoBlock, 0)

		// Loop until the P dies and disassociates this
		// worker (the P may later be reused, in which case
		// it will get a new worker) or we failed to associate.
		if _p_.gcBgMarkWorker.ptr() != gp {
			break
		}

		// Disable preemption so we can use the gcw. If the
		// scheduler wants to preempt us, we'll stop draining,
		// dispose the gcw, and then preempt.
		park.m.set(acquirem())

		if gcBlackenEnabled == 0 {
			throw("gcBgMarkWorker: blackening not enabled")
		}

		startTime := nanotime()
		_p_.gcMarkWorkerStartTime = startTime

		decnwait := atomic.Xadd(&work.nwait, -1)
		if decnwait == work.nproc {
			println("runtime: work.nwait=", decnwait, "work.nproc=", work.nproc)
			throw("work.nwait was > work.nproc")
		}

		systemstack(func() {
            // 标记我们的goroutine为可抢占，这样它的栈就可以被扫描。
            // 这让两个标记workers互相扫描(否则，它们会死锁)。我们不能修改G栈上的任何东西。
            // 然而，栈收缩对于mark workers是禁用的，所以从G栈中读取是安全的。
			casgstatus(gp, _Grunning, _Gwaiting)
            //根据处理器上的 gcMarkWorkerMode 模式决定扫描任务的策略
			switch _p_.gcMarkWorkerMode {
			default:
				throw("gcBgMarkWorker: unexpected gcMarkWorkerMode")
			case gcMarkWorkerDedicatedMode:  // 全力标记，直到任务结束
				gcDrain(&_p_.gcw, gcDrainUntilPreempt|gcDrainFlushBgCredit)
				if gp.preempt {
					//被抢占了。这是一个有用的信号，可以将所有内容从运行队列中踢出，以便它可以在其他地方运行。
					lock(&sched.lock)
					for {
						gp, _ := runqget(_p_)
						if gp == nil {
							break
						}
						globrunqput(gp)
					}
					unlock(&sched.lock)
				}
				// Go back to draining, this time
				// without preemption.
				gcDrain(&_p_.gcw, gcDrainFlushBgCredit)
			case gcMarkWorkerFractionalMode:
				gcDrain(&_p_.gcw, gcDrainFractional|gcDrainUntilPreempt|gcDrainFlushBgCredit)
			case gcMarkWorkerIdleMode:
				gcDrain(&_p_.gcw, gcDrainIdle|gcDrainUntilPreempt|gcDrainFlushBgCredit)
			}
			casgstatus(gp, _Gwaiting, _Grunning)
		})

		// Account for time.
		duration := nanotime() - startTime
		switch _p_.gcMarkWorkerMode {
		case gcMarkWorkerDedicatedMode:
			atomic.Xaddint64(&gcController.dedicatedMarkTime, duration)
			atomic.Xaddint64(&gcController.dedicatedMarkWorkersNeeded, 1)
		case gcMarkWorkerFractionalMode:
			atomic.Xaddint64(&gcController.fractionalMarkTime, duration)
			atomic.Xaddint64(&_p_.gcFractionalMarkTime, duration)
		case gcMarkWorkerIdleMode:
			atomic.Xaddint64(&gcController.idleMarkTime, duration)
		}

		// Was this the last worker and did we run out
		// of work?
		incnwait := atomic.Xadd(&work.nwait, +1)
		if incnwait > work.nproc {
			println("runtime: p.gcMarkWorkerMode=", _p_.gcMarkWorkerMode,
				"work.nwait=", incnwait, "work.nproc=", work.nproc)
			throw("work.nwait > work.nproc")
		}

		// 如果此工作线程达到后台标记完成点，则向主GC goroutine发出信号。
		if incnwait == work.nproc && !gcMarkWorkAvailable(nil) {
			// Make this G preemptible and disassociate it
			// as the worker for this P so
			// findRunnableGCWorker doesn't try to
			// schedule it.
			_p_.gcBgMarkWorker.set(nil)
			releasem(park.m.ptr())

			gcMarkDone()  // 调用 gcMarkDone 方法完成标记

			// Disable preemption and prepare to reattach
			// to the P.
			//
			// We may be running on a different P at this
			// point, so we can't reattach until this G is
			// parked.
			park.m.set(acquirem())
			park.attach.set(_p_)
		}
	}
}

type gcTriggerKind int

const (
   // 堆内存的分配阈值触发
   gcTriggerHeap gcTriggerKind = iota

   // 定时任务出发，如果一定时间内没有触发，就会触发新的循环，由 runtime.forcegcperiod 变量控制，默认为 2 分钟；
   gcTriggerTime

   // 主动出发，如果当前没有开启垃圾收集，则触发新的循环；
   gcTriggerCycle
)

// start forcegc helper goroutine
func init() {
	go forcegchelper()
}
// forcegchelper 在大多数时间都是休眠状态的，但是它会被系统监控器 runtime.sysmon 在满足垃圾收集条件时唤醒
func forcegchelper() {
	forcegc.g = getg()
	lockInit(&forcegc.lock, lockRankForcegc)
	for {
		lock(&forcegc.lock)
		if forcegc.idle != 0 {
			throw("forcegc: phase error")
		}
		atomic.Store(&forcegc.idle, 1)
        //当前 G 主动陷入休眠等待其他 Goroutine 的唤醒，在统监控器 runtime.sysmon 在满足垃圾收集条件时唤醒
		goparkunlock(&forcegc.lock, waitReasonForceGCIdle, traceEvGoBlock, 1)
		// this goroutine is explicitly resumed by sysmon
		if debug.gctrace > 0 {
			println("GC forced")
		}
		gcStart(gcTrigger{kind: gcTriggerTime, now: nanotime()}) // 开启 GC 收集
	}
}

// Puts the current goroutine into a waiting state and unlocks the lock.
// The goroutine can be made runnable again by calling goready(gp).
func goparkunlock(lock *mutex, reason waitReason, traceEv byte, traceskip int) {
	gopark(parkunlock_c, unsafe.Pointer(lock), reason, traceEv, traceskip)
}

// Always runs without a P, so write barriers are not allowed.
//go:nowritebarrierrec
func sysmon() {
    ...
    // check if we need to force a GC
    if t := (gcTrigger{kind: gcTriggerTime, now: now}); t.test() && atomic.Load(&forcegc.idle) != 0 {
        lock(&forcegc.lock)
        forcegc.idle = 0
        var list gList
        list.push(forcegc.g)
        injectglist(&list)
        unlock(&forcegc.lock)
    }
    ...
}

// GC runs a garbage collection and blocks the caller until the
// garbage collection is complete. It may also block the entire
// program.
func GC() {
   // 等待上一个循环的标记终止、标记和标记终止阶段完成；
   n := atomic.Load(&work.cycles)
   gcWaitOnMark(n)

   // 触发新一轮的GC
   gcStart(gcTrigger{kind: gcTriggerCycle, n: n + 1})
   // 等待手动的GC 结束
   gcWaitOnMark(n + 1)

    // 返回前完成此轮扫描。这样做既是为了完成周期，也是因为runtime.GC()经常被用作测试和基准测试的一部分，
    // 以使系统进入一个相对稳定和隔离的状态。
    // 持续调用 runtime.sweepone 清理全部待处理的内存管理单元并等待所有的清理工作完成，
    // sweepone 扫描一些未清理的堆span，并返回返回堆的页面数，如果没有需要清理的内容，则返回 ^uintptr(0)。
   for atomic.Load(&work.cycles) == n+1 && sweepone() != ^uintptr(0) {
      sweep.nbgsweep++
      Gosched() // 等待期间会调用 runtime.Gosched 让出处理器，以便让其他 G 运行
   }

   for atomic.Load(&work.cycles) == n+1 && atomic.Load(&mheap_.sweepers) != 0 {
      Gosched()
   }

   // 已经完成了清理工作，可以发布稳定堆 profile 文件，可以用于做内存分析。
   mp := acquirem()
   cycle := atomic.Load(&work.cycles)
   if cycle == n+1 || (gcphase == _GCmark && cycle == n+2) {
      mProf_PostSweep() // 记录阶段的堆内存状态快照到 runtime.memRecord，我们可以获取这时的内存状态
   }
   releasem(mp)
}

func mallocgc(size uintptr, typ *_type, needzero bool) unsafe.Pointer {
	shouldhelpgc := false
	...
	if size <= maxSmallSize {
		if noscan && size < maxTinySize {
			...
            // 在申请微对象和小对象时，当前线程的内存管理单元中不存在空闲空间时，
            // 需要调用 runtime.mcache.nextFree 方法从中心缓存获取新mspan时，触发垃圾收集计算
			v := nextFreeFast(span)
			if v == 0 {
				v, _, shouldhelpgc = c.nextFree(tinySpanClass) // shouldhelpgc
			}

			...
		} else {
			...
			v := nextFreeFast(span)
			if v == 0 {
				v, span, shouldhelpgc = c.nextFree(spc) // shouldhelpgc
			}
		  ...
		}
	} else {
        // 申请超过32KB多大对象时，触发垃圾收集计算
		shouldhelpgc = true  							// shouldhelpgc
        systemstack(func() {
			span = largeAlloc(size, needzero, noscan)
		})
		...
	}
	...
	if shouldhelpgc {
        // 计算是否满足触发 GC 条件，触发类型 gcTriggerHeap
		if t := (gcTrigger{kind: gcTriggerHeap}); t.test() {
			gcStart(t)
		}
	}

	return x
}

// test 报告触发器条件是否满足，这意味着_GCoff 阶段的退出条件已经满足，满足了开始垃圾收集的条件了。
func (t gcTrigger) test() bool {
	if !memstats.enablegc || panicking != 0 || gcphase != _GCoff {
		return false
	}
	switch t.kind {
	case gcTriggerHeap:
        // 当内存中存活的对象字节数heap_live大于触发垃圾收集的堆大小gc_trigger时，新一轮的垃圾收集就会开始。
		return memstats.heap_live >= memstats.gc_trigger
	case gcTriggerTime:
		if gcpercent < 0 {
			return false
		}
		lastgc := int64(atomic.Load64(&memstats.last_gc_nanotime))
		return lastgc != 0 && t.now-lastgc > forcegcperiod
	case gcTriggerCycle:
		// t.n > work.cycles, but accounting for wraparound.
		return int32(t.n-work.cycles) > 0
	}
	return true
}

// This must only be called when gcBlackenEnabled != 0.
func (c *gcControllerState) findRunnableGCWorker(_p_ *p) *g {
    //如果mutator辅助标记和mark worker 被允许标黑对象，gcBlackenEnabled为1，
    //只有当gcphase == _GCmark时才能设置为 1。
	if gcBlackenEnabled == 0 {
		throw("gcControllerState.findRunnable: blackening not enabled")
	}
	if _p_.gcBgMarkWorker == 0 {
		// The mark worker associated with this P is blocked
		// performing a mark transition. We can't run it
		// because it may be on some other run or wait queue.
		return nil
	}

	if !gcMarkWorkAvailable(_p_) {
		// No work to be done right now. This can happen at
		// the end of the mark phase when there are still
		// assists tapering off. Don't bother running a worker
		// now because it'll just return immediately.
		return nil
	}

	decIfPositive := func(ptr *int64) bool {
		if *ptr > 0 {
			if atomic.Xaddint64(ptr, -1) >= 0 {
				return true
			}
			// We lost a race
			atomic.Xaddint64(ptr, +1)
		}
		return false
	}

    // 通过 dedicatedMarkWorkersNeeded 决定专门执行标记任务的 Goroutine 数量
    // 并根据执行标记任务的时间和总时间决定是否启动 gcMarkWorkerFractionalMode 模式的 Goroutine；
	if decIfPositive(&c.dedicatedMarkWorkersNeeded) {
		// This P is now dedicated to marking until the end of
		// the concurrent mark phase.
		_p_.gcMarkWorkerMode = gcMarkWorkerDedicatedMode
	} else if c.fractionalUtilizationGoal == 0 { // 处理器的个数敲好是 4 的倍数，则不需要启动
		// No need for fractional workers.
		return nil
	} else {
		// Is this P behind on the fractional utilization
		// goal?
		//
		// This should be kept in sync with pollFractionalWorkerExit.
		delta := nanotime() - gcController.markStartTime
		if delta > 0 && float64(_p_.gcFractionalMarkTime)/float64(delta) > c.fractionalUtilizationGoal {
			// Nope. No need to run a fractional worker.
			return nil
		}
		// 启动 gcMarkWorkerFractionalMode 模式的 mark worker.
		_p_.gcMarkWorkerMode = gcMarkWorkerFractionalMode
	}

	// Run the background mark worker
	gp := _p_.gcBgMarkWorker.ptr()
	casgstatus(gp, _Gwaiting, _Grunnable)
	if trace.enabled {
		traceGoUnpark(gp, 0)
	}
	return gp
}

// The world must be stopped.
func gcMarkRootPrepare() {
	work.nFlushCacheRoots = 0

	// Compute how many data and BSS root blocks there are.
	nBlocks := func(bytes uintptr) int {
		return int(divRoundUp(bytes, rootBlockBytes))
	}

	work.nDataRoots = 0
	work.nBSSRoots = 0

	// Scan globals.
	for _, datap := range activeModules() {
		nDataRoots := nBlocks(datap.edata - datap.data)
		if nDataRoots > work.nDataRoots {
			work.nDataRoots = nDataRoots
		}
	}

	for _, datap := range activeModules() {
		nBSSRoots := nBlocks(datap.ebss - datap.bss)
		if nBSSRoots > work.nBSSRoots {
			work.nBSSRoots = nBSSRoots
		}
	}

	// Scan span roots for finalizer specials.
	//
	// We depend on addfinalizer to mark objects that get
	// finalizers after root marking.
	if go115NewMarkrootSpans {
		// We're going to scan the whole heap (that was available at the time the
		// mark phase started, i.e. markArenas) for in-use spans which have specials.
		//
		// Break up the work into arenas, and further into chunks.
		//
		// Snapshot allArenas as markArenas. This snapshot is safe because allArenas
		// is append-only.
		mheap_.markArenas = mheap_.allArenas[:len(mheap_.allArenas):len(mheap_.allArenas)]
		work.nSpanRoots = len(mheap_.markArenas) * (pagesPerArena / pagesPerSpanRoot)
	} else {
		// We're only interested in scanning the in-use spans,
		// which will all be swept at this point. More spans
		// may be added to this list during concurrent GC, but
		// we only care about spans that were allocated before
		// this mark phase.
		work.nSpanRoots = mheap_.sweepSpans[mheap_.sweepgen/2%2].numBlocks()
	}

	// Scan stacks.
	//
	// Gs may be created after this point, but it's okay that we
	// ignore them because they begin life without any roots, so
	// there's nothing to scan, and any roots they create during
	// the concurrent phase will be scanned during mark
	// termination.
	work.nStackRoots = int(atomic.Loaduintptr(&allglen))

	work.markrootNext = 0
	work.markrootJobs = uint32(fixedRootCount + work.nFlushCacheRoots + work.nDataRoots + work.nBSSRoots + work.nSpanRoots + work.nStackRoots)
}
